Compact MPPT Solar Charge Controller Portable 12 Volt Solar Charge Controller

Ask Lasest Price
Brand Name :	Sunchonglic
Model Number :	MPPT-80A(12V-60V)
Price :	US $11.15-178.34
Payment Terms :	T/T
Supply Ability :	100000pcs/mon
Delivery Time :	20-60 work days

Add to Cart

Product Details
Company Profile

Compact MPPT Solar Charge Controller Portable 12 Volt Solar Charge Controller

Solar Mppt Charger 12V 24V 48V 60V 80A Solar Mppt Charge Controller

>>>Product Description

What is feature of solar mppt charger 12V 24V 48V 60V 80A solar mppt charge controller?

1.Designed for 12V/24V/48V/60V battery
2.Max MPPT PV array operating voltage 180V DC

3.Innovative maximunm power point tracking technology can significantly improve the energy utilization rate of the solar system,with conversion efficiency of up to 97%

4.Quickly scan the entire I-V curve,and efficiently track the maximum power point

5.Three types of lead-acid batteries,sealed,colloidal,and open type,and lithium battery series are optional

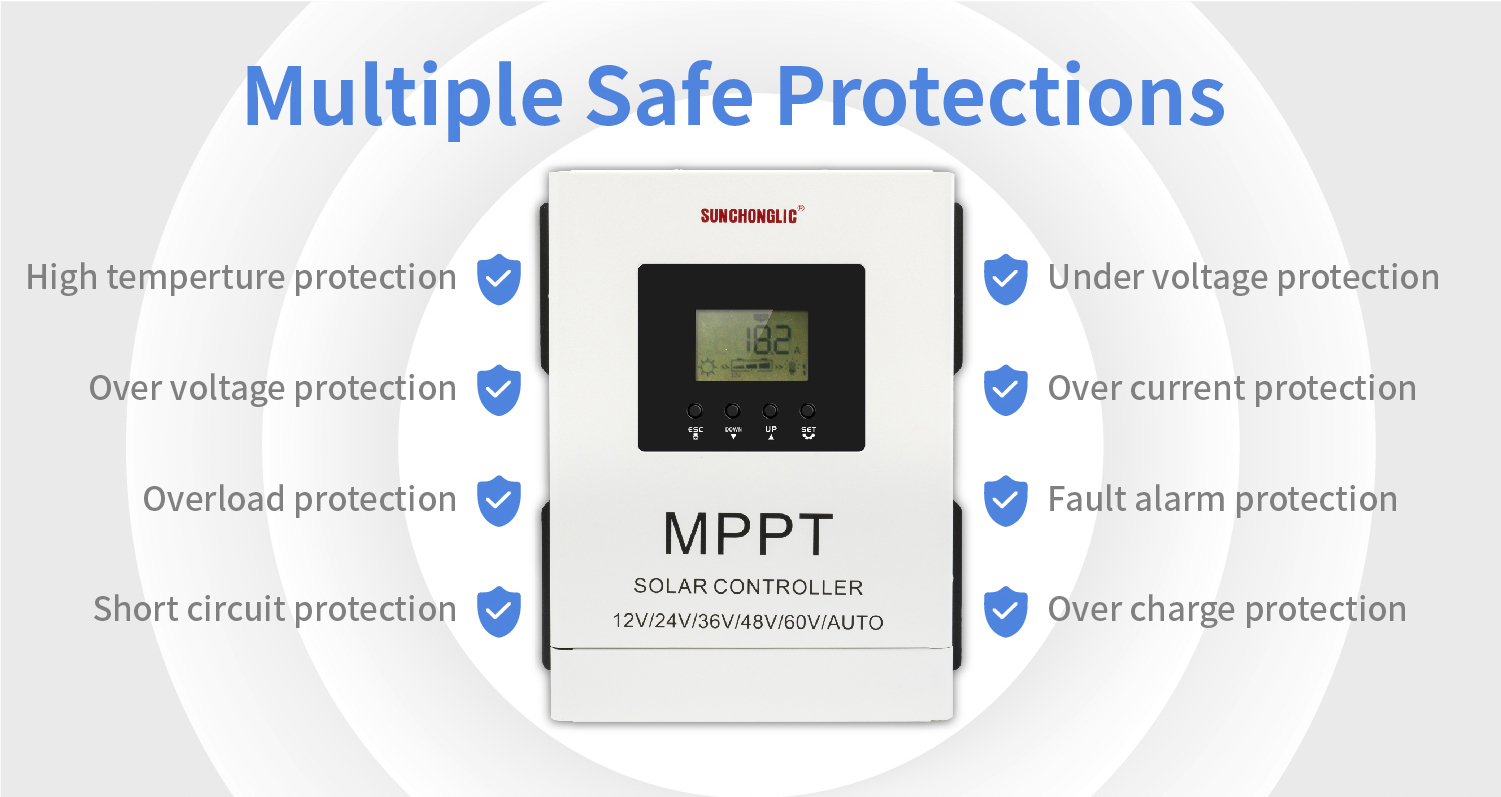

6.With automatic protection of overcharge,overdischarge, overload and short circuit

>>>Product Specifications

Model		60A/80A
Charging Mode		MPPT automatic maximum power tracking
Charging Method		MPPT tracks maximum power,fast charge,balanced charge,and float charge
m N	Lead Acid	(12V/24V/48V/60V Auto+Adjustable 12V/24V/48V/60V)
	Gel	12V/24V/48V/60V
	LifePo 4	Single voltage 3.2* number of strings (2 strings-45 strings adjustable)
	Li-ion	Single voltage 3.7* number of strings (2 strings-45 strings adjustable)
	USER	Adjustable limit voltage for equal charge,float charge and DC discharge:8V-170V
With lithium battery activation function		With photovoltaic input,there is charging voltage (activate lithium battery), can be used without battery DC output
PV maximum open circuit input voltage		0-180V
The charging current is adiustable		0-60A 0-80A
Start charging		PV voltage is greater than+3V of battery voltage(low current charging on rainy days)
Direct charging current output function		DC continuous output 40A
Temperature compensation		According to the temperature of the battery, the charging voltage and current are automatically compensated to prolong the battery life
Working environment temperature		-20℃~40'C
Protection level		IP21
Altiude		0~3000m
Product size		218x265x100mm
N.W./G.W.

>>>Our Factory

We are a seasoned producer of solar photovoltaic products. Our facility specializes in manufacturing solar inverters, AGM/GEL lead-acid battery chargers, and solar charge controllers, among others. Opting for Sunchonglic brand items is a sound decision.

For detailed product information, feel free to reach out to us at any time!

>>>Production Process


>>>FAQ

Q1. Are you the factory manufacturer?
A1. We are doing the Solar Energy Photovoltaic Products for over 20 years.
We are the original manufacturer and developer of advanced Solar Energy Photovoltaic
Product,including hybrid solar inverter, power inverter,battery chargers,solar controller,
and solar system,etc.
Q2.How to select a suitable products?
A2.Tell us your demand, we will recommend a suitable one to you.
Q3. What is your payment methods?
A3. We accept T/T,Trade Assurance,etc.
Q4. What’s the price terms can you offer for us?
A4. We can accept EXW, FOB, CIF and so on.
Q5. Where is your main market for your products?
A5. Most of our Sunchonglic brand products are exported to Southeast Asia, Africa and
Mid East etc.

Our range of products has gained international acclaim and confidence, adeptly

responding to changing economic and societal needs. We warmly welcome both

prospective and current global partners to join forces, nurturing partnerships that

propel mutual prosperity!
